I’ll kick-off this blog by re-visiting one of my early experiments. I first heard about randograms through this nullprogram post where Chris Wellons used one to visualise the (poor) quality of the original 24-bit pseudo-random number generator (PRNG) used in QBasic.

The idea is to repeatedly call the PRNG, extract some bytes from the output on each iteration (in this post I’ll look at the two lowest bytes), and plot these against each other. The result is a 256x256 image which gives us a visual clue about the quality of the PRNG.

Let’s see how these look for a few common PRNGs.

I’ll also introduce a heatmap idea to give us a slightly deeper picture of where the weaknesses of each PRNG lie. I produce the heatmaps at the same time as the randograms, but instead of plotting the bytes against each other I look at the individual bits to see if there are any obvious correlations.

QBasic

The QBasic PRNG is a simple Linear Congruential Generator (LCG). Translating into C the code looks like this:

uint32_t qbasic(uint32_t* s)
{
    *s = (*s*0xfd43fd + 0xc39ec3) & 0xffffff;
    return *s;
}

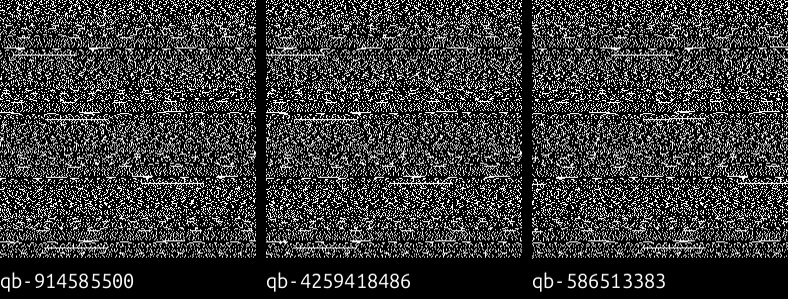

Here are a few QBasic randograms with different seeds: QBasic randograms

There’s definitely a pattern here! As we vary the seed there are these horizontal line features that always appear in similar positions.

How does the heatmap look? For seed 914585500 we’ve got:

Bit index 8 9 10 11 12 13 14 15 Avg.
0 4065 4066 4066 4064 4060 4062 4078 4066 4065
1 4065 4073 4064 4060 4066 4068 4125 3985 4063
2 4067 4072 4064 4060 4062 4069 4159 3973 4065
3 4061 4066 4066 4060 4064 4065 4084 4033 4062
4 4071 4065 4070 4060 4063 4066 4159 3999 4069
5 4067 4062 4067 4064 4064 4067 4170 4030 4073
6 4063 4064 4065 4062 4063 4066 4110 4012 4063
7 4077 4073 4065 4069 4064 4067 4121 3991 4065
Avg. 4067 4067 4065 4062 4063 4066 4125 4011

We’ve got some anomalies in the last two columns. Bit 14 is on more frequently than average and Bit 15 is on less frequently. Additionally the row averages are remarkably consistent - if the output was truly random there would be more variation here.

I’m not going to look at this very formally, but given that I see similar patterns for all of the seeds I’ve tried, I think we’re seeing clear evidence of dependence between the lower bits. This is what you would expect for an LCG.

C rand()

Next I wanted to take a look at the venerable C rand() function. This is another LCG, so we’re going to see a similar picture, right?

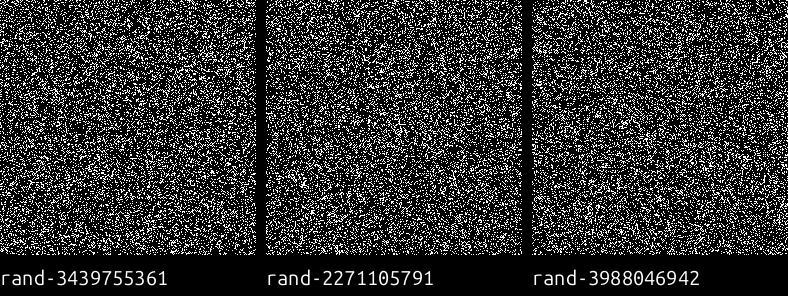

C rand randograms

Well that’s a lot better than I expected! If I squint at these randograms then maybe I can make out some 2D structures, but it’s a lot less obvious than in the previous example.

The heatmap for 3439755361 looks like this:

Bit index 8 9 10 11 12 13 14 15 Avg.
0 4080 4131 4016 4017 4074 4078 4082 4066 4068
1 4119 4038 4074 4068 4081 4081 4121 4070 4081
2 4152 4076 4110 4100 4107 4147 4093 4066 4106
3 4053 4027 4038 4056 4045 4132 4085 4102 4067
4 4103 4151 4089 4096 4085 4143 4149 4197 4126
5 4092 4083 4016 3982 4160 4086 4058 4058 4066
6 3986 4061 3970 4054 4013 4045 4013 4030 4021
7 4067 4031 3989 4016 4022 4086 4143 4042 4049
Avg. 4081 4074 4037 4048 4073 4099 4093 4078

Again, this looks reasonable. I’ve tried a few seeds and can’t pick out any obvious correlations between the bits. The really uniform row/column averages aren’t visible here.

So why does rand seem so much better than the QBasic examples? Well, the C Standard doesn’t actually say how rand should be implemented. It’s commonly an LCG, but could be something better.

On my system rand is implemented as part of libc, specifically version GLIBC 2.39-0ubuntu8.4. I’ve done some digging and in fact locally my rand implements a Linear Feedback Shift Generator (LFSG), which is more sophisticated and has much better randomness properties.

Side note: LCG improvements

It wouldn’t be surprising if another LCG had better properties than the original QBasic implementation. The key improvements we could make are:

  • Use the full 32-bit period: the QBasic implementation is limited to 24-bits for no good reason.
  • Introduce mixing: we can reduce linear dependence between bits by combining different parts of the state using bit shifts and XOR operations.

Xorshift

The xorshift family of PRNGs are some of my favourites: they are simple to implement and behave very nicely. They’re actually related to the well-behaving LFSG we saw in the previous section.

I’ve tested the 32-bit XOR-based version (ref: Algorithm “xor” from p. 4 of Marsaglia, “Xorshift RNGs”):

uint32_t xorshift32(uint32_t* s)
{
  *s ^= *s << 13;
  *s ^= *s >> 17;
  *s ^= *s << 5;
  return *s;
}

xs32 randograms

Heatmap for seed 2191022762:

Bit index 8 9 10 11 12 13 14 15 Avg.
0 4054 3999 4011 3972 4132 4077 4108 4151 4063
1 3978 4045 3958 3946 4087 3995 4048 4111 4021
2 4032 4050 4037 4028 4038 4079 3991 4074 4041
3 4059 4079 4047 4000 4136 4090 4083 4087 4072
4 4076 4002 4043 4007 4082 4022 4026 4077 4041
5 4096 4025 4065 4016 4151 4167 4091 4141 4094
6 4043 4012 4003 4024 4083 4114 4031 4060 4046
7 4028 4035 4026 3944 4087 4030 4011 4065 4028
Avg. 4045 4030 4023 3992 4099 4071 4048 4095

A nice, simple algorithm, plus the randogram and heatmap are comparable to the LFSG rand implementation. We can further improve this algorithm by switching to xorshift* which includes an extra multiplication and reduces linear dependence.

Closing thoughts

I think randograms are fun and give us some nice intuition into the quality of a PRNG’s randomness.

They’re obviously not great for giving us a measurable output - even when combined with my ad hoc bitwise comparisons - for that we need test suites like Big Crush.

When choosing which PRNG to use for a project you need to take into account details of the problem domain. None of the algorithms I’ve shown above are suitable for cryptographic purposes, but if the quality of the randomness isn’t paramount and performance is then I’d recommend one of the xorshift family (e.g. for Monte Carlo simulations).

Despite the C rand function making a good showing, I would not recommend using it unless you don’t care about quality of randomness at all. The implementation you have access to might be a lot worse than mine.

The source code for this experiment is on my Github at randogram.
